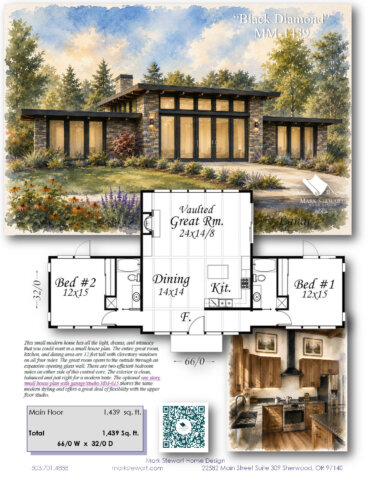

Plan Number: MM-1439Square Footage: 1,439Width: 66Depth: 32Stories: 1Master Floor: Main FloorBedrooms: 2Bathrooms: 2Cars: 2
Main Floor Square Footage: 1,439Site Type(s): Flat lot, Front View lot, Modular Home lot, Rear View Lot, shallow lotFoundation Type(s): crawl space floor joist, crawl space post and beam, slab
« New Search New Search »

Black Diamond – One Story MCM Modern Home Design – MM-1439


Living Large in a Small Modern Home

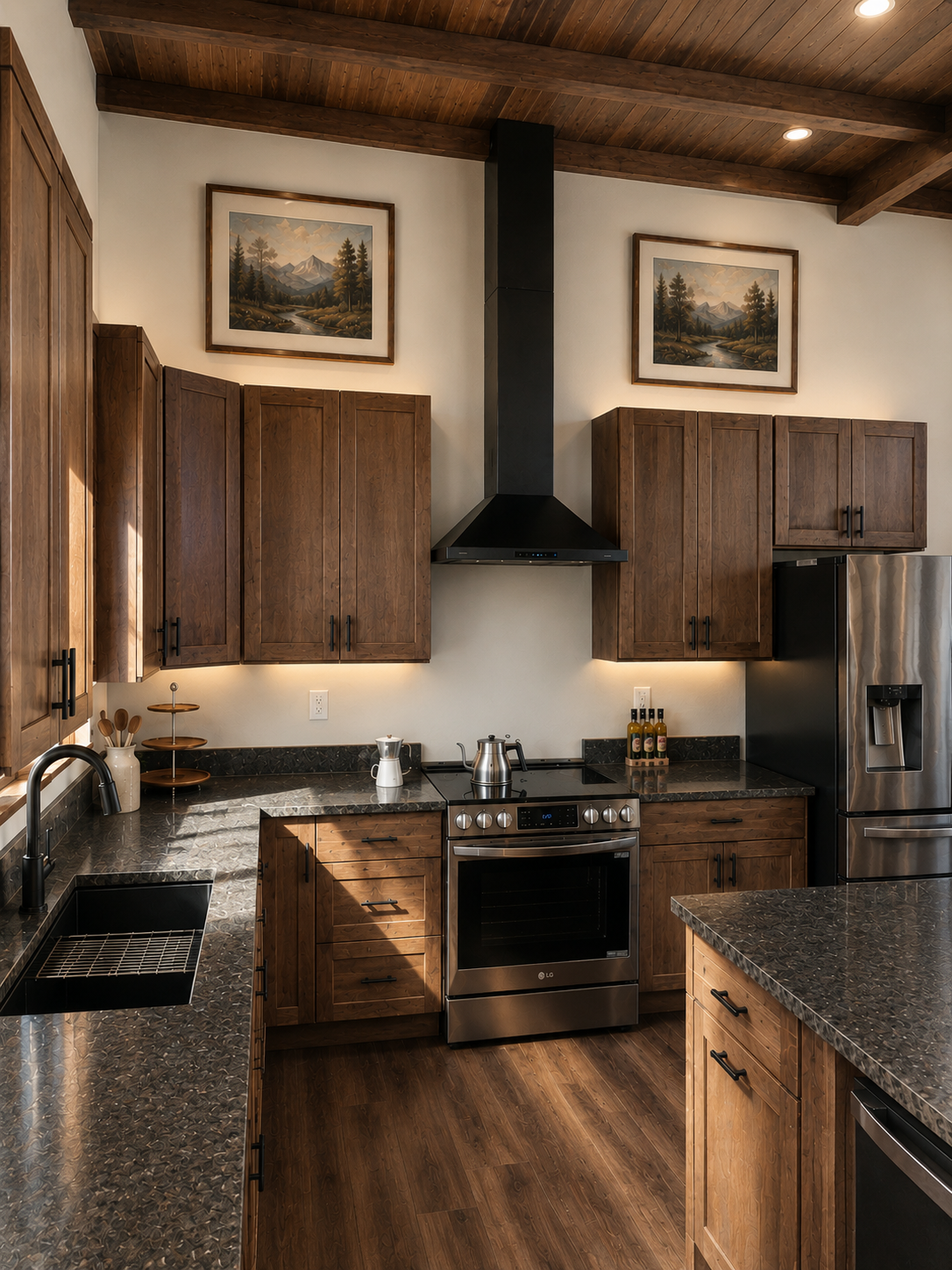

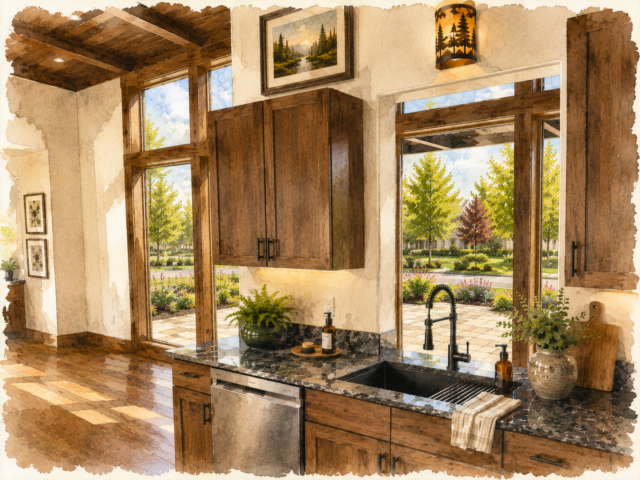

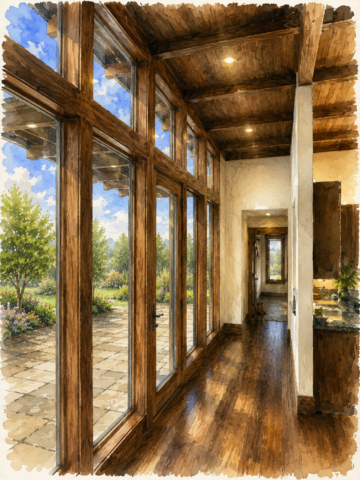

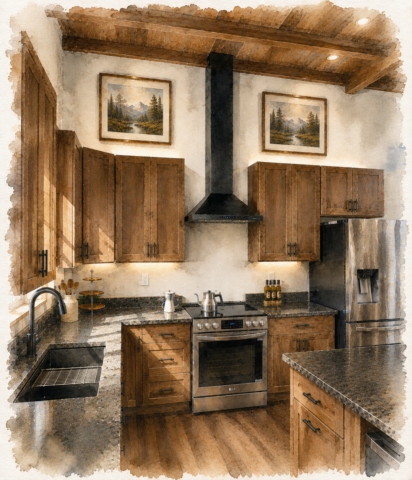

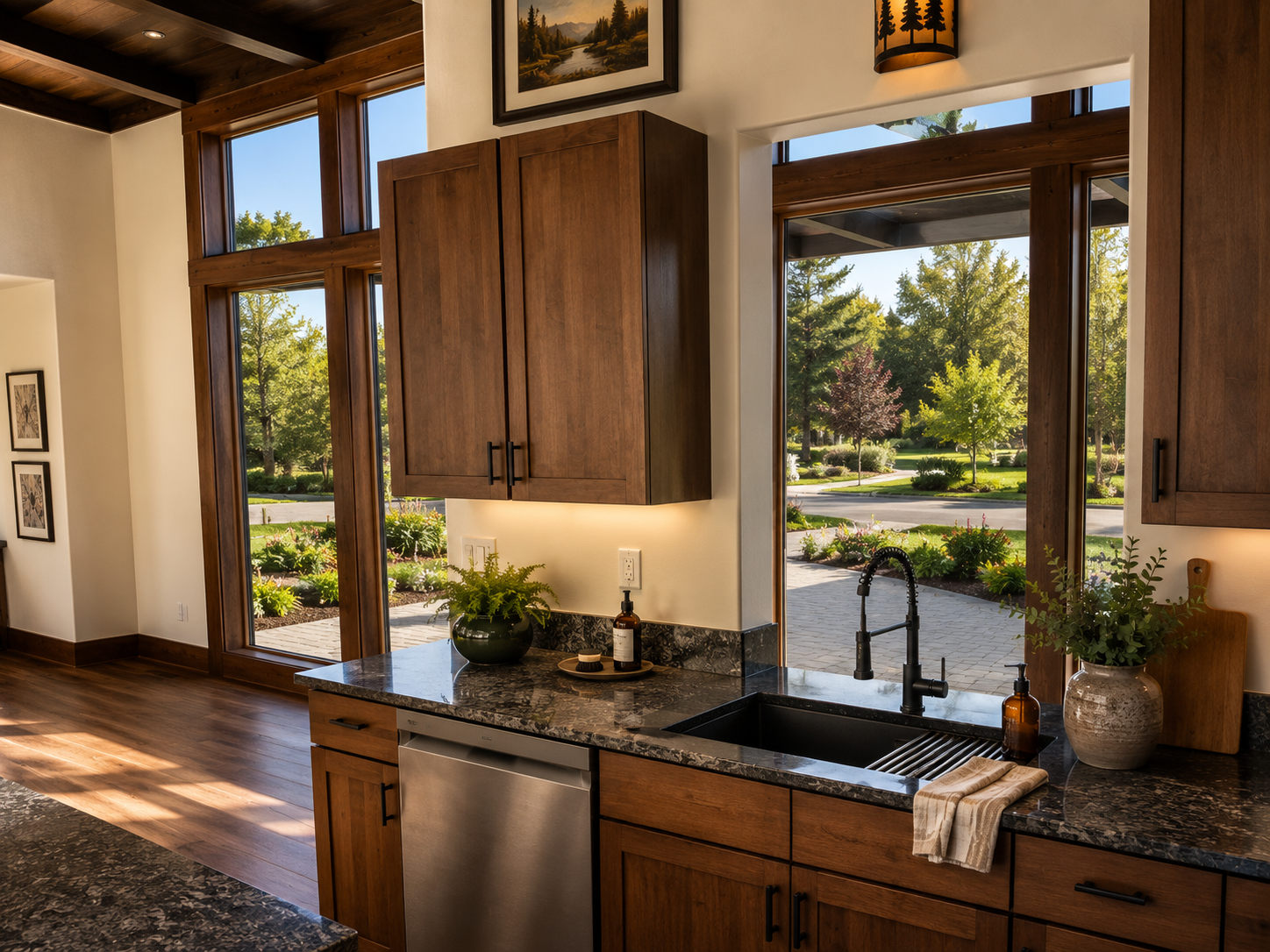

Black Diamond Small Modern HomeThis small modern home has all the light, drama, and intimacy that you could want in a small house plan. The entire great room, kitchen, and dining area are 12 feet tall with clerestory windows on all four sides.

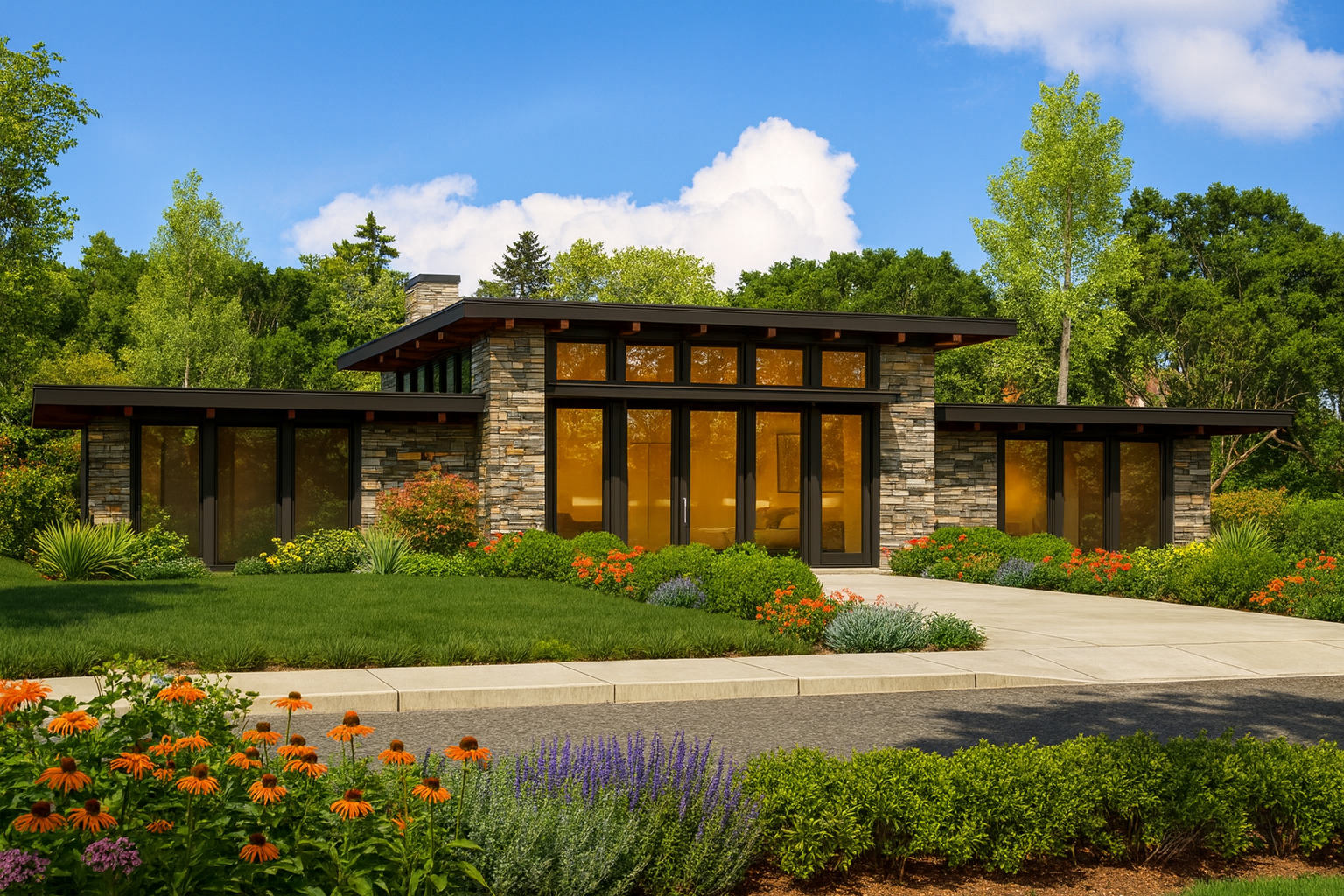

The great room opens to the outside through an expansive opening glass wall. There are two efficient bedroom suites on either side of this central core. The exterior is clean, balanced and just right for a modern taste. The optional one story small house plan with garage/studio MM-615 shares the same modern styling and offers a great deal of flexibility with the upper floor studio.

House Plan Features

  • 12 foot ceilings at central core
  • 2 Bathroom House design
  • 2 Master Suites
  • Great Room Design
  • Modern Masterpiece
  • One Story Home Design
  • Two Bedroom House Plan
  • U.S. Copyright Registration No. VA 2-263-954
Purchase Option Price
Add Slab Foundation Option Info


Detailed Material List for this House Plan Info


ICF OR Concrete Block Exterior wall system conversion. Info


Lateral Wall Bracing and Structural Calculations for this house plan on your lot , most anywhere in US. Info


Printable PDF of the Complete set of Building plans for this design Info


CAD Files of the Complete Building Plans for this Home Design Info


6 Sets of complete building Plans AND PDF for this Home Design Info


Reverse PDF Additional charge Info


In-ground basement extra charge Info


Daylight Walk-out Basement additonal charge Info


image151374 Print
image29569 Print
MM-1439 Main Floor
image14723 Print
MM-1439 Great Room 1
image14722 Print
MM-1439 Great Room 2
image14724 Print

Load more

3 reviews for Black Diamond – One Story MCM Modern Home Design – MM-1439

  1. Kathy DeLaurier

    ? What would it cost to build this house

    • Mark Stewart

      This could vary from place to place. A working budget would be $150 per sq. foot but a lot would depend upon finishes you chose..

    • Mark Stewart

      Tough to predict. Where are you going to be building?

  2. dennis maney

    do you have locations for utilities; electrical, mechanical, laundry?

    • Mark Stewart

      HI Dennis
      Yes the bathroom on the right side has a stacked washer and dryer (indicated by a square box with a cross hatch) In the same location on the left hand bathroom there is a similar graphic that indicates the furnace location. On demand water heater can be placed on any outside wall or a traditional water heater can go in the crawl space of the home..Electrical panel can be placed anywhere.

    • Mark Stewart

      Each bath has a square shown with an X through it. Laundry (Stacked washer and dryer) goes on one side and the furnace goes in the other bathroom. Electrical panel can be placed wherever the electrician decides is best

  3. Dana Dunmire

    This is an absolutely beautiful house. There seem to be two versions of the floor plan. One has the clerestories on the sides and one doesn’t. Do the plans come with both versions?

    • Mark Stewart

      Excellent observation. We do actually have it both ways. The transom window version is by far my favorite!
